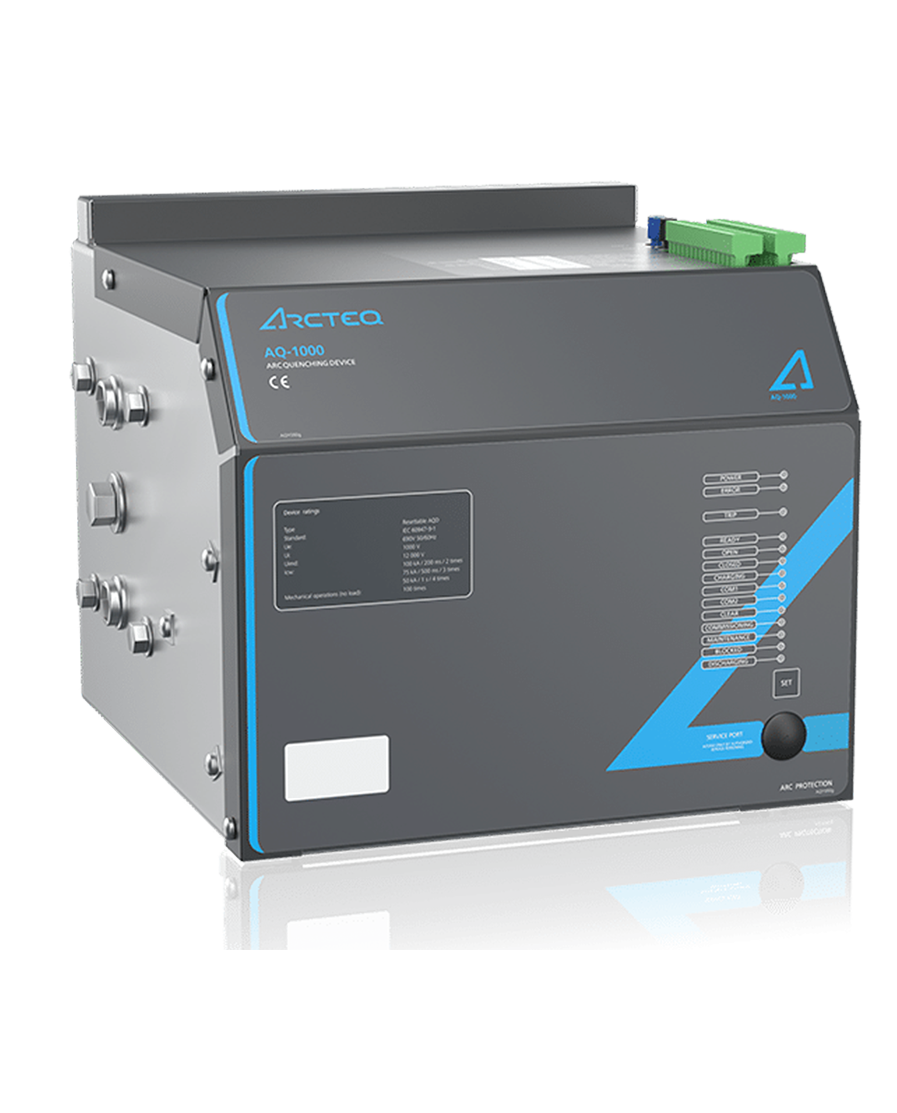

AQ 1000 Arc Quenching Device
The AQ-1000 arc quenching device extinguishes arcing faults in systems with a maximum rated voltage of 690 V. The AQ-1000 arc quenching system is designed to limit the total arcing time to 4 ms and to minimize (or even eliminate) the damaging effects that an arc fault’s temperature and pressure cause. In most applications, this will result in an energy release of less than 1 cal/cm². AQ-1000 is fully resettable which allows for full system testing on-site.
Read More
Features:
AQ-1000 is used in conjunction with the AQ-100 arc protection system. When an AQ-100 series device detects a fault, it triggers the AQ-1000 arc quenching system and, simultaneously, trips the circuit breaker(s) feeding the fault. Then the AQ-1000 creates a low-impedance parallel path for the fault current to flow through, thus extinguishing the arc fault. The total arcing time is less than 4 milliseconds.
Technical Data
- Maximum rated voltage: 690 V
- Short circuit withstand (IEC 60947-9-1/UL 2748): 100 kA (200 ms), 75 kA (500 ms), 50 kA (1 s)
- BIL: 12 kV
- Electric life: 2 operations at 100 kA, 200 ms each
- Mechanical life: 100 operations
- Total system operating time: 4 ms
- AX001-3 Connection fiber (3 meters)
- AX001-5 Connection fiber (5 meters)
- AX001-10 Connection fiber (10 meters)
