AQ-F255 Feeder Protection Devices

The AQ-F255 feeder protection devices offer a modular feeder protection and control solution for applications that require a large I/O capacity. You can add up to 11 I/O or communication modules into the device for extensive monitoring and control applications. The AQ-F255 feeder protection device communicates using various protocols, including the IEC 61850 substation communication standard.

Read More
Description:

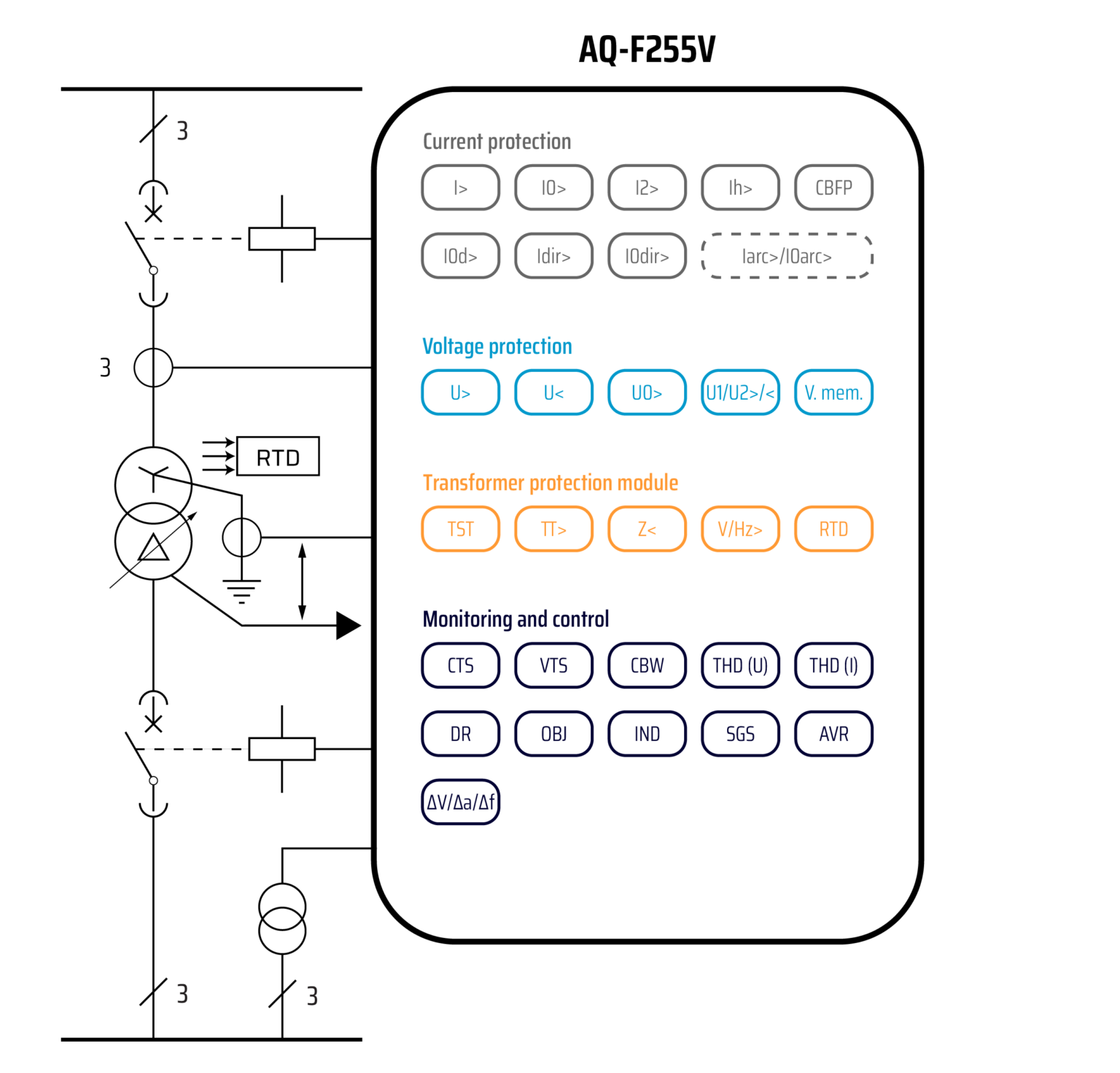

We offer four (4) variants of the AQ-F255 feeder protection device: A, R, S, and V.

Highlights:
  • A wide range for the power supply (18…72 V DC or 92…265 V AC/DC).
  • A maximum of 12 arc light point sensors (3 point sensors per channel).
  • 4 trip relays (with 7 ms trip time).
  • 1 system failure relay.
  • 3 fast binary outputs.
  • 6 fast binary inputs.
  • 1 multifunction push button.
  • Non-volatile memory.
  • 17 indication LEDs.

Technical Data

AQ-F255A has full feeder functionality.

  • Applicable sensors
  • AQ-01 light sensor (activation thresholds: 8 klx, 15 klx, 50 klx)
  • AQ-02 light and pressure sensor (activation thresholds: 8 klx, 15 klx, 50 klx)
  • Trip relays (T1, T2, T3)
  • 2 NO + 1 NC or 3 NO
  • Rated voltage: 250 V AC/DC
  • Continuous carry: 5 A
  • Make-and-carry for 3 s: 16 A
  • Make-and-carry for 0.5 s: 30 A
  • Breaking capacity DC (when L/R = 40 ms): 40 W; 0.36 A at 110 V DC
  • Contact material: AgNi 90/10
  • Binary outputs (BO1, BO2, BO3)
  • Number of outputs: 3
  • Rated voltage: +24 V DC
  • Maximum rated current: 20 mA
  • Binary inputs (BI1, BI2, BI3, BI4, BI5, BI6)
  • Number of inputs: 6
  • Threshold voltage: 24/110/220 V DC
  • Rated voltage: 250 V AC/DC
  • Rated current: 3 mA
  • Power supply
  • Auxiliary power supply: 92…265 V AC/DC
  • Auxiliary power supply: 18…72 V DC (optional)
  • Maximum interruption: 100 ms
  • Maximum power consumption: 5 W
  • Standby current: 90 mA

  • 17 indication LEDs
  • Multifunction push button (SET)
  • Autoconfiguration
  • Indication reset
  • System check

  • Sensors and wiring
  • Binary I/O
  • Trip coil
  • Power supply
  • Internal voltages
  • Settings

Technical Data

  • Light (L>)
  • Light and pressure (L> / P>)
  • Circuit breaker failure protection (50BF/52BF)
  • Total trip time when using mechanical trip relays: 7 ms (only arc light signal from an AQ-110x device)
  • Total trip time when using mechanical trip relays: 7 ms (both overcurrent and arc light signal from an AQ-110x device)
  • Reset time (arc light stage): 2 ms
  • Protection operational after power up: 88 ms

  • Applicable sensors
  • AQ-01 light sensor (activation thresholds: 8 klx, 15 klx, 50 klx)
  • AQ-02 light and pressure sensor (activation thresholds: 8 klx, 15 klx, 50 klx)
  • Trip relays (T1, T2, T3)
  • 2 NO + 1 NC or 3 NO
  • Rated voltage: 250 V AC/DC
  • Continuous carry: 5 A
  • Make-and-carry for 3 s: 16 A
  • Make-and-carry for 0.5 s: 30 A
  • Breaking capacity DC (when L/R = 40 ms): 40 W; 0.36 A at 110 V DC
  • Contact material: AgNi 90/10
  • Binary outputs (BO1, BO2, BO3)
  • Number of outputs: 3
  • Rated voltage: +24 V DC
  • Maximum rated current: 20 mA
  • Binary inputs (BI1, BI2, BI3, BI4, BI5, BI6)
  • Number of inputs: 6
  • Threshold voltage: 24/110/220 V DC
  • Rated voltage: 250 V AC/DC
  • Rated current: 3 mA
  • Power supply
  • Auxiliary power supply: 92…265 V AC/DC
  • Auxiliary power supply: 18…72 V DC (optional)
  • Maximum interruption: 100 ms
  • Maximum power consumption: 5 W
  • Standby current: 90 mA

  • 17 indication LEDs
  • Multifunction push button (SET)
  • Autoconfiguration
  • Indication reset
  • System check

  • Sensors and wiring
  • Binary I/O
  • Trip coil
  • Power supply
  • Internal voltages
  • Settings
